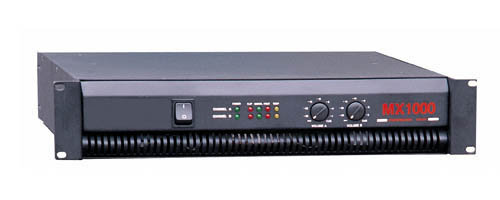

MX1000 纯后级立体声功放
1970/01/01 19:05 点击：723 / 回复：0
〓性能特点〓
◆ 双通道立体声专业功放系列
◆ 可桥接成BTL方式
◆ 具有输出短路保护及告警、过热告警和饱和失真告警
◆ 1单元LED电平指示
〓规格参数〓
| MODEL |
MX1000 |
||||
| MAX. RATED POWER / CH 8Ω |
150W |
||||
| MAX. RATED POWER / CH 4Ω |
250W |
||||
| MAX. RATED POWER / BTL 8Ω |
500W |
||||
| MAX.PEAK VOLTAGE SWING | |||||
| INPUT SENSITIVITY |
1V | ||||
| NOISE （ A WEIGHTED） |
>85 dB | ||||
| DAMPING FACTOR / 8Ω 1KHz |
200:1 | ||||
| INPUT CMRR |
> 90 dB | ||||
| FREQUENCY RESPONSE |
20Hz - 20KHz + | ||||
| THD INTO 4Ω / 1KHz |
< 0.1％，1/3 rated power | ||||
| VOLTAGE GAIN |
> 38 dB | ||||
| SLEW RATE |
> 15V / MICROSECOND | ||||
| COOLING |
TWO 120V OR 240V AC FAN | ||||
| SWITCHES, CONTROLS, ETC | 1 FRONT PANEL POWER SWITCH, 2 FRONT PANEL ATTENUATORS, AND 1 REAR PANEL MODE SWITCH. | ||||
| INDICATORS | 2"POWER", 2"CLIP", 2"SIGNAL", 2"DC", AND 2"TEMP" LEDS. | ||||
| PROTECTION | POWER TURN ON - TURN OFF, HIGH TEMPERATURE, DC VOLTAGE, SHORT CIRCUIT LIMITING. | ||||
| DIMENSIONS （H x W x L） |
88 x 482 x 340 MM | ||||
| NET WEIGHT |
17 Kg |
||||
