专业的IP音频端点

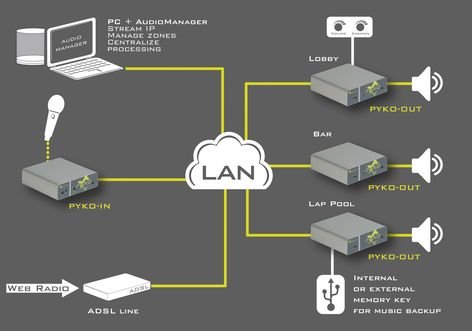

When distributing digital audio over a shared IP network, the PYKO range offers professional solutions for a large scope of professional audio applications: transportation, industrial, background music, paging, intercom ａｎｄ broadcast. The PYKO-out can also decode shoutcast/icecast streaming which answers to the in-store application request. 当数字音频分配一个共享的IP网络， PYKO范围内提供专业解决方案的一个大范围的专业音频应用：运输，工业，背景音乐，寻呼，对讲和广播。该PYKO出还可以解码shoutcast / icecast流的答案店内的应用要求。

·         该PYKO出音频播放MP3或从标准的PCM流或当地的IP存储的MP3文件。 Together with Digigram Audio Manager software, PYKO IP-based network audio terminals enable designing fully managed audio distribution solutions. 连同Digigram音频管理器软件， PYKO基于IP的网络音频终端的设计完全能够管理音频分配解决方案。 PYKO terminals have been designed with pro audio applications in mind: PYKO终端的设计与专业音频应用到：

·         Compact, yet robust, rack-mountable modules ａｎｄ rail-din adapters紧凑，但功能强大，机架单元适配器

·         balanced audio I/Os on terminal block connectors, +18 dBu max levels平衡音频的I / O的接线端子连接器， 18观的最高水平

·         8 GPIOs, RS232 8个GPIO ， RS232接口

·         Internal ａｎｄ external USB host ports内部和外部的USB主机端口

NCX网络音频终端采取Digigram音频处理能力的计算机 ， 并把它在你需要它。 They are creative, reliable, ａｎｄ easy-to-use solutions for background music, listening stations, transportation facilities, ａｎｄ informational/architectural audio installations. 他们是创造性的，可靠和易于使用的解决方案的背景音乐，听电台，交通设施，和信息/建筑音响设施

分发数字音频数据，与标准以太网连接， NCX网络音频终端的急剧增加的最大数量的音频通道，可以可靠地管理一台计算机。 At the same time, we have provided a flexible ａｎｄ fast development environment essential to those who will create applications using this exciting new technology.与此同时，我们提供了一个灵活和快速发展的环境必不可少的那些谁将创建应用程序中使用这一令人兴奋的新技术。

音频管理器软件
In fixed audio installations, being able to manage system resources ａｎｄ audio streams from a central point is a must.在固定的音频装置，能够管理系统资源和音频流从一个中央点是必须的。 With Audio Manager, planning, deploying ａｎｄ managing your network audio system has never been so easy.与音频管理器，规划，部署和管理您的网络音频系统从未如此容易。

当今复杂的安装需要多种类型的音源。 Audio Managers core engine is based on Visiblu™, the Network Audio Operating System.音频管理器的核心引擎是基于Visiblu ™ ，网络音频操作系统。 It can mix ａｎｄ manage IP sources, EtherSound™ channels, analog sources, audio files, events, ａｎｄ schedules with ease.它可以组合和管理IP来源， EtherSound ™渠道，模拟源，音频文件，活动和日程安排提供方便。 It also provides processing ａｎｄ mixing points within the network, for example, mixing announcements with background music.它还提供加工和混合点在网络覆盖范围内，例如，混合通知的背景音乐。

By distributing digital audio data over a stａｎｄard Ethernet network, NCX Network Audio Terminals dramatically increase the maximum number of audio channels that can be reliably managed by a single computer.分发数字音频数据，与标准以太网连接， NCX网络音频终端的急剧增加的最大数量的音频通道，可以可靠地管理一台计算机。 At the same time, we have provided a flexible ａｎｄ fast development environment essential to those who will create applications using this exciting new technology.与此同时，我们提供了一个灵活和快速发展的环境必不可少的那些谁将创建应用程序中使用这一令人兴奋的新技术。

Think of an NCX terminal as a "remote" sound card.想想一个NCX终端作为“远程”声卡。 Sound cards are typically connected to a computers internal bus.声卡通常是连接到计算机的内部总线。 NCX terminals provide the same audio input/output ａｎｄ processing functions, but are connected to the computer via Ethernet. NCX终端提供同样的音频输入/输出和处理功能，而且是连接到计算机通过以太网。 NCX terminals can be put ｗｈｅｒｅ you need them ａｎｄ can be hot-plugged ａｎｄ unplugged so changes can be made without shutting your system down. NCX终端可以将您需要的，可热插入和拔除，以便改变可没有关闭您的系统崩溃。

NCX terminals are available as both stａｎｄ-alone units ａｎｄ as a circuit board for rapid incorporation into custom products. NCX终端可作为两个独立的单位，作为一个电路板的快速纳入定制产品。

A networked application can be rapidly assembled.网络应用程序可快速组装。 Each terminal is connected to the application-server PC using stａｎｄard Ethernet (10/100baseT) hubs, switches, ａｎｄ cables.每个终端连接到应用服务器的PC使用标准的以太网（的10/100BaseT ）集线器，交换机和电缆。 Overall system configuration is performed from the server ｗｈｅｒｅ the application software resides, while ongoing application control can be from the server, from individual NCX terminals, from any remote computer using IP protocol, or a combination of both.整个系统的配置是从服务器的应用软件驻留，而正在实施的控制可以从服务器，从个人NCX终端，从任何远程计算机使用的IP协议，或两者兼而有之。 Bi-directional serial communications capabilities are provided on each NCX, permitting source ｓｅｌｅｃｔion, status, ａｎｄ other communication with the server.双向串行通信能力上提供每个NCX ，允许源选择，地位，和其他通讯的服务器。 The application determines control point.申请认定控制点。

As the API is the stａｎｄard Digigram np SDK, the same application may manage server-resident Digigram sound cards along with multiple NCX terminals.由于空气污染指数是标准Digigram微粒的SDK ，同时应用可管理服务器驻地Digigram声卡连同多个NCX终端。 Digigram can also provide advanced programming tools, such as NCXengine. Digigram也可以提供先进的编程工具，如NCXengine 。 NCXengine offers the ability to control the functions of multiple NCX networks from one or more control points via LAN, WAN, or Internet. NCXengine提供的功能可以控制的职能，多NCX网络由一个或多个控制点，通过局域网，广域网或Internet 。

Depending on the NCX model used, each audio terminal can record/encode, play/decode, or is full duplex.根据NCX模型，每个音频终端可以记录/编码，播放/解码，或者是全双工。 Multiple digital audio data streams can be sent to a single NCX for mixing on the audio terminal, helping to minimize CPU requirements on the application server.多个数字音频数据流可以发送到一个单一的NCX混合的音频终端，从而有助于最大限度地减少CPU要求对应用服务器。

There are five stａｎｄard models in the NCX range.有五种标准模式NCX范围。 In addition, Digigram looks forward to providing development partners with custom network ａｎｄ audio interfaces, as well as special enclosures ａｎｄ additional software capabilities, to fulfill specific requirements.此外， Digigram期待与发展合作伙伴提供定制的网络和音频接口，以及特殊外壳的和额外的软件功能，以满足特定需求。
